SRX Speakers
SRX 835p
Specifications
System TypeSelf powered 15”, three-way, bass-reflexMaximum SPL (1m)137 dBFrequency Range (-10dB)33 Hz - 21 kHzFrequency Response (±3 dB)41 Hz - 20 kHzCoverage Pattern60° x 40°Amplifier DesignClass DPower Rating2000 W PeakDimensions (H x W x D)476mm x 544mm x 984mm (18.74in x 21.4in x 38.74in)Net Weight (each)38.6 kg (85 lb)EQ20 parametric EQ's, speaker delay, and 50 available slots for presetsInputsNeutrik ¼ - XLR input; Neutrik XLR OutputOutputs2 x XLREnclosure18 mm, 11-ply Finnish birch plywood; black DuraFlex™ finish; integral recessed handlesNominal ImpedanceNA - amplification is integratedLF Driver1 x 2275F, Differential Drive®, 15" diameterMF Driver1 x 2107HHF Driver1 x 2432H compression driver, neodymium 76mm (3 in) diameter voice coilSuspension / MountingSingle 36 mm pole socket, 12 x M10 suspension points

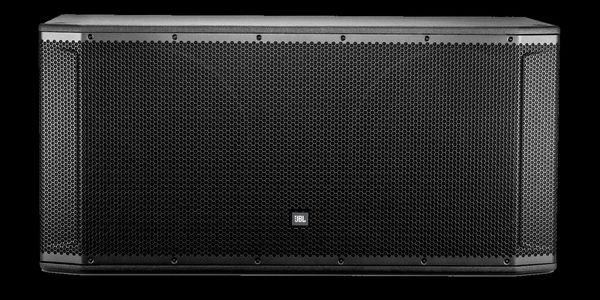

SRX 828sp
Specifications
System TypeSelf powered dual 18”, subwoofer systemMaximum SPL (1m)141 dBFrequency Range (-10dB)29 Hz - 150 HzFrequency Response (-3 dB)35 Hz - 120 HzAmplifier DesignClass DPower Rating2000 W PeakDimensions (H x W x D)681mm x 1205mm x 574mm (26.79in x 47.42in x 22.57in)Net Weight (each)65.9 kg (145 lb)EQ20 parametric EQ's, speaker delay, and 50 available slots for presetsInputsNeutrik ¼ - XLR input; Neutrik XLR OutputOutputs2 x XLREnclosure18 mm Duraflex coated plywoodLF Driver2 x 18 in Differential Drive®System ProcessingDSP based, resident in Input Module
